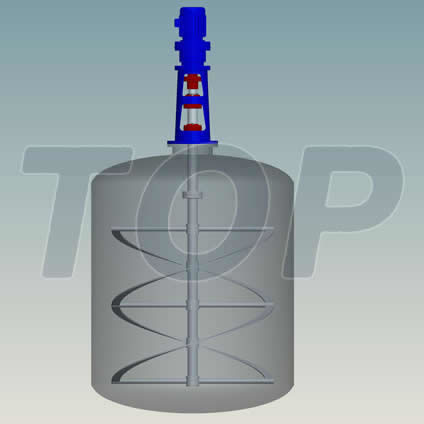

Ribbon Mixing Agitator
Description
V series spiral ribbon mixers are used for the blending of solid powder, such as fine chemicals, dyestuff, chemical fertilizer and metal powder. It can shear the sensitive crystal powder and mix batch products. Additionally, this ribbon blender machine can make the liquid mixed in the solid. With good design, V series spiral ribbon mixers are applicable to the general arrangement of typical chemical plants. The ribbon mixing agitators also fit to the dangerous places due to low peripheral speed.
Features of V Spiral Ribbon Mixers
1. This machine makes positive displacement to mix solid materials that flow freely.
2. The ribbon blender machine adopts cantilever shaft structure, and the bearing end does not contact the materials.
3. There is little interval between the agitating vane and the wall of container, which can prevent material from binding together.
4. The spiral ribbon mixer is equipped with standardized stirring driving box to ensure a stable operation and low maintenance cost.
5. With special geometrical O shape circle, the ribbon blender machine is carried on high quality surface treatment. What’s more, this ribbon mixing machine eliminates the dead angle.
6. The container can be heated or cooled by the external jacket.
7. The pulverizator is used to prevent materials from blocking.
Functions of Ribbon Mixing Agitator
1. The spiral ribbon mixer provides strong mixing effect to make the materials close to the wall of container ascend and the materials in the center descend.
2. This ribbon blender machine has the ability to mix the flowing granules softly and completely
3. Abundant materials can be mixed in a short time and can reach high standard homogeneous mixing.
4. This ribbon mixer can almost drain all the materials
Main Technical Standards of Spiral Ribbon Mixer
Model | effective volume (L) | Height (mm) | Width (mm) | Weight (kg) |
TOP-V1 | 106 | 1900 | 1000 | 800 |
TOP-V2 | 256 | 2300 | 1100 | 1000 |
TOP-V3 | 432 | 2500 | 1300 | 1500 |
TOP-V4 | 674 | 2900 | 1500 | 2000 |
TOP-V5 | 1107 | 3200 | 1700 | 3000 |
TOP-V6 | 1711 | 3500 | 2000 | 3500 |
TOP-V7 | 2500 | 4000 | 2200 | 4000 |
TOP-V8 | 4088 | 4400 | 2600 | 5000 |
TOP-V9 | 5454 | 4500 | 2600 | 5500 |
TOP-V10 | 7093 | 5100 | 3000 | 6500 |
TOP-V11 | 10077 | 6200 | 3400 | 10000 |
TOP-V12 | 16836 | 6900 | 3900 | 13000 |
TOP-V13 | 20216 | 7400 | 4600 | 16000 |
TOP-V14 | 26091 | 8000 | 5000 | 18000 |
TOP-V1 5 | 33007 | 8500 | 5400 | 20000 |
Lanteky. is a professional manufacturer and supplier of spiral ribbon mixer in China. Our products mainly include mixing impeller, portable mixer, magnetic stirrer, belt drive mixer, gear drive mixer, ribbon blender machine, mud scraper, industrial spiral mixer, submersible mixer and mixing support. We export our ribbon mixing agitator to Japan, Korea, Russia, Singapore, Canada, Kazakhstan, Armenia, Ukraine and Mexico. If you need ribbon blenders, please feel free to contact us.
