Helical Ribbon Mixing Agitator

Helical Ribbon Mixing Agitator

Description
TOP 42 series helical ribbon mixers are extensively used in pharmacy, food, fine chemistry, chemical and petroleum, pesticide, coating, cosmetics, plastics, pigments and feedstuff industries. The helical ribbon agitators consist of U shaped container, spiral ribbon impellers and transmission parts. Our ribbon mixers adopt foreign advanced technologies to manufacture, and have achieved the international advanced level. The ribbon mixing machines are suitable for blending materials in different industries.

Features of Helical Ribbon Agitator
1. The ribbon mixing machine has a broad application scope. It is used for powder-powder mixing, and power-liquid stirring. This ribbon blender also can be served as reaction equipment and drying machinery.
2. The ribbon mixer has a good mixing homogeneity, which can mingle materials equally at the ratio of 1:10000. Blending the substances with different specific gravities will obviously show its advantages.
3. Advantages of this helical ribbon agitator include gentle mixing process, high efficiency, low energy consumption and less crushability.
4. With special design, this ribbon mixer meets the requirements of GMP standard.
5. This ribbon mixing machine has the following characteristics: rapid mixing, large load factor, easy maintenance, simple operation and long service life.

Parameters of Helical Ribbon Agitator

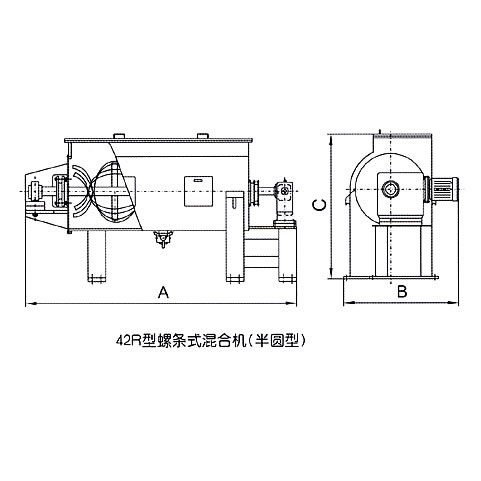

Model Full Volume (m3) Working Volume (m3) Dimension (mm) Weight (kg)
A B C
TOP42-1 0.008 0.0056 700 232 500 70
TOP42-2 0.028 0.02 1030 559 550 130
TOP42-3 0.05 0.035 1050 600 700 260
TOP42-4 0.2 0.14 1700 1000 1030 450
TOP42-5 0.37 0.26 2200 1020 1000 600
TOP42-6 0.6 0.42 2500 1100 1130 1000
TOP42-7 0.85 0.6 2550 1250 1200 1400
TOP42-8 1.15 0.8 3010 1810 1200 1800
TOP429 1.57 1.1 3100 1950 1350 2200
TOP42-10 2 1.4 3400 2000 1800 2900
TOP42-11 2.25 1.6 3800 2180 2130 3200
TOP42-12 2.5 1.8 3950 2180 2130 3300
TOP42-13 3.1 2.2 4210 2300 2184 4000
TOP42-14 3.7 2.6 4275 2380 2210 4262
TOP42-15 4.7 3.3 4350 2650 2240 5700
TOP42-16 5.5 3.9 4900 2870 2280 7600
TOP42-17 6.6 4.6 5300 3100 2500 8900
TOP42-18 8.5 6 5300 3400 2300 11500
TOP42-19 10 7 5600 3700 2900 12200
TOP42-20 12 8.4 5900 4000 3200 17000
TOP42-21 16 11.2 6452 4000 3200 20000
TOP42-22 18 12.6 6452 4200 3530 22000

ZZ Group. is a professional helical ribbon agitator manufacturer and ribbon mixing machine supplier in China. Our products mainly include mixing impeller, portable mixer, magnetic stirrer, belt drive agitator, gear drive mixer, helical ribbon mixer, mud scraper, industrial spiral mixer, submersible mixer and mixing stands. We adopt professional standard specifications and strict quality management system to ensure the technologies and helical ribbon agitator can indeed meet the demands of customers.
